Caliper & Pad Drawings

Technical drawings and measurements for our calipers and pads are available below. Scroll to the relevant size and application to see diagrams for your vehicle.

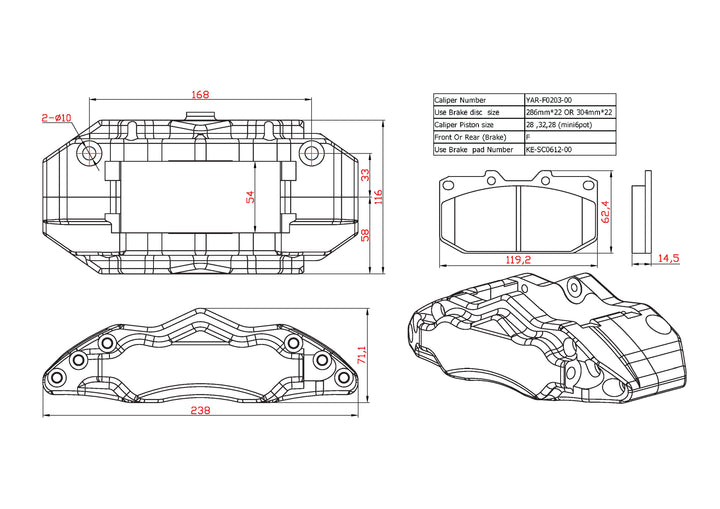

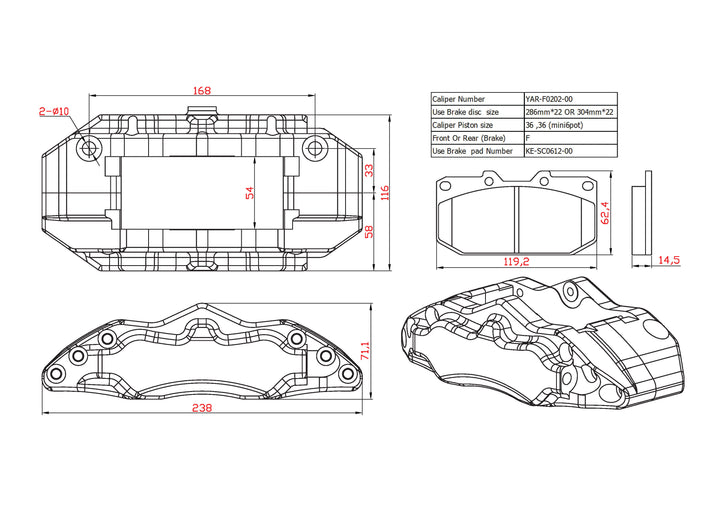

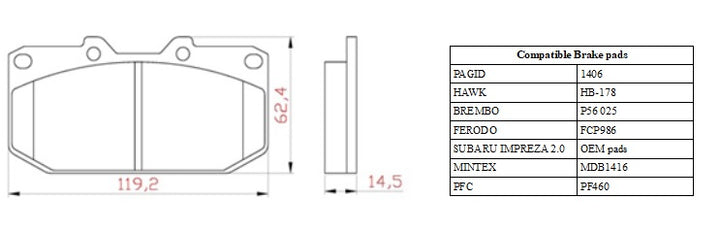

Front 286x22mm / 304x22mm 4-pot

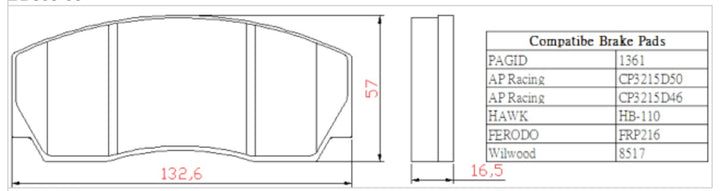

Front 286x22mm / 304x22mm 6-pot

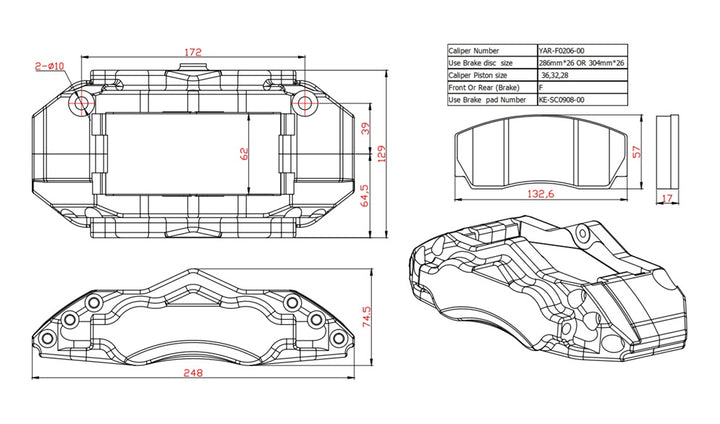

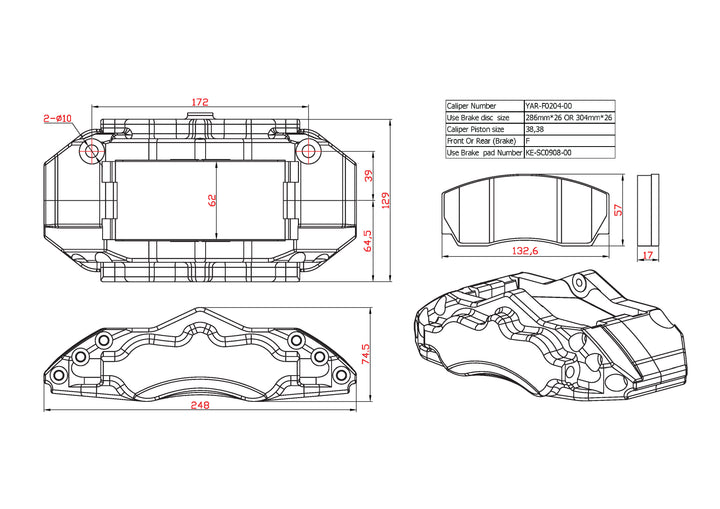

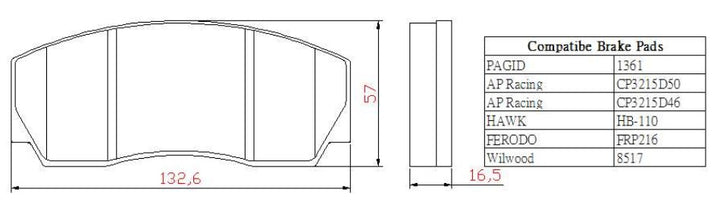

Front 286x26mm / 304x26mm 4-pot

Front 304x26mm 6-pot

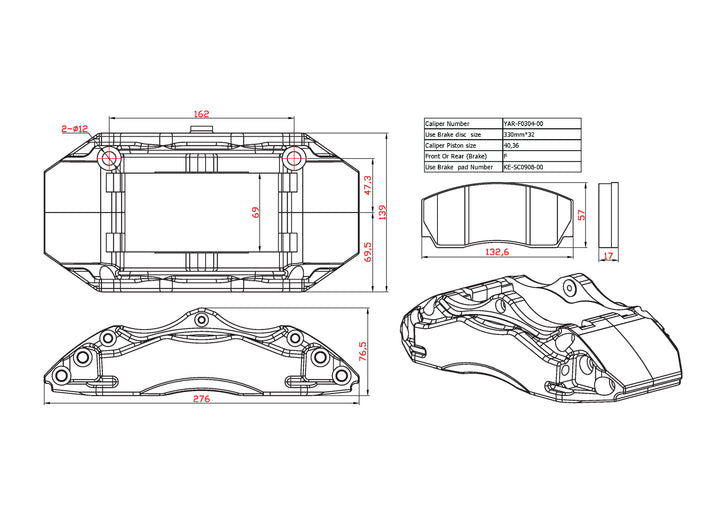

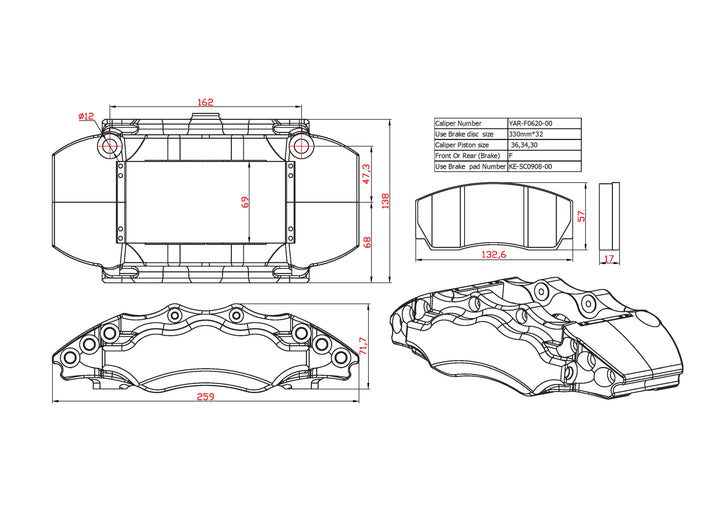

Front 330x32mm 4-pot

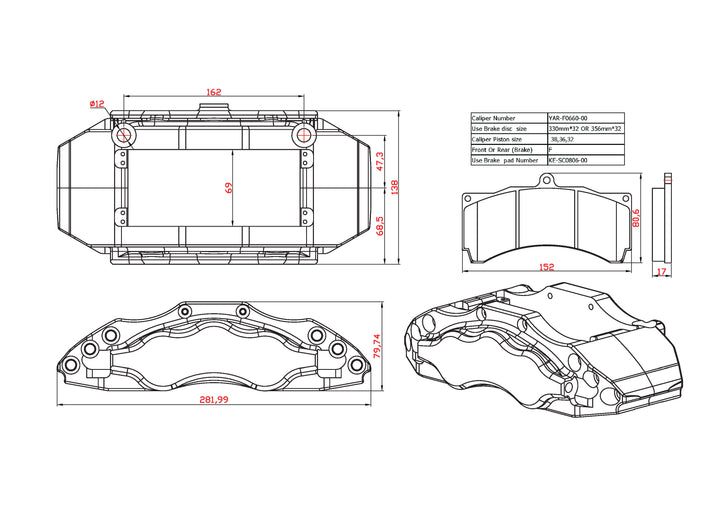

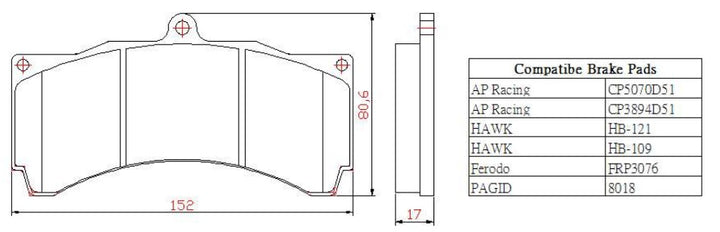

Front 330x32mm 6-pot

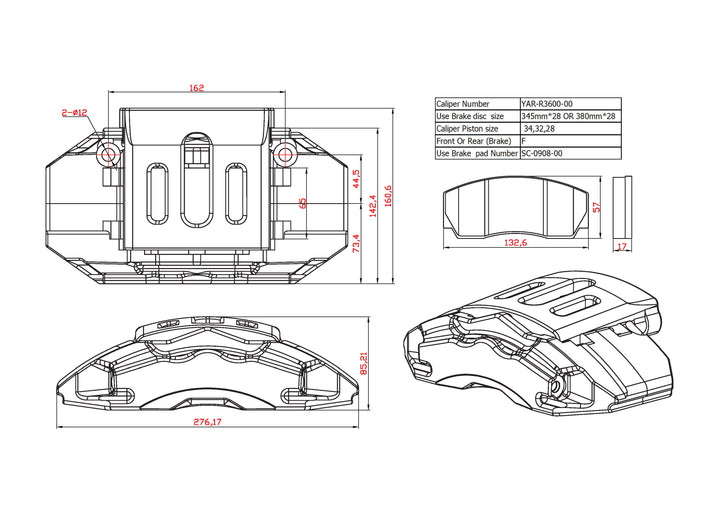

Front 345x32mm / 356x32mm 6-pot

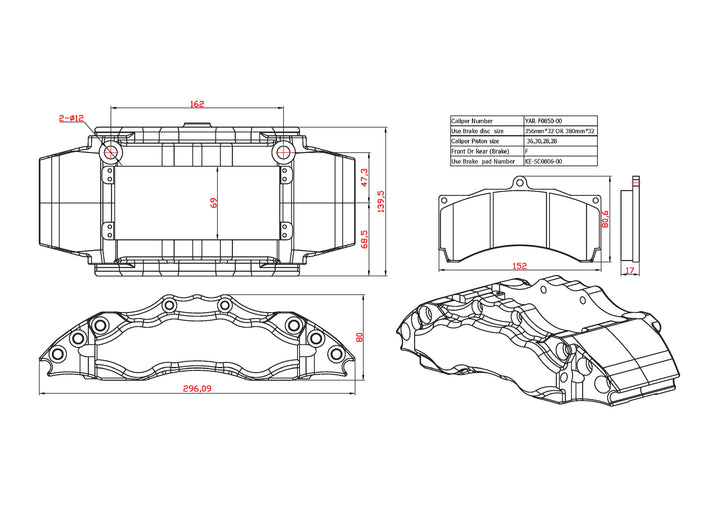

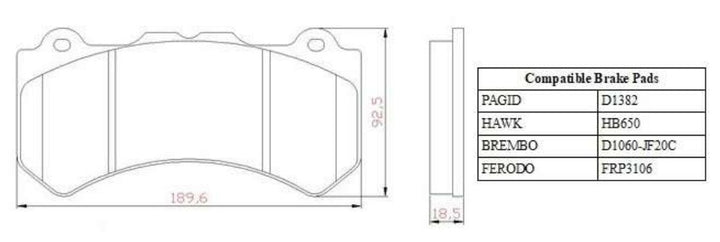

Front 356x32mm / 380x32mm 8-pot

Front 380x34mm 8-pot

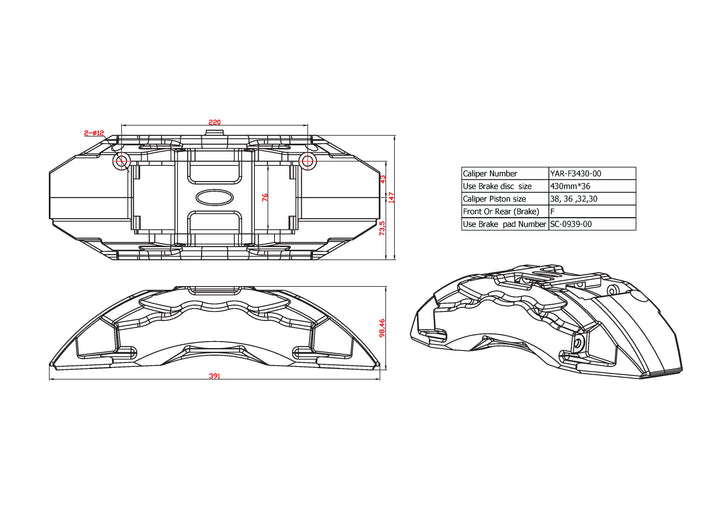

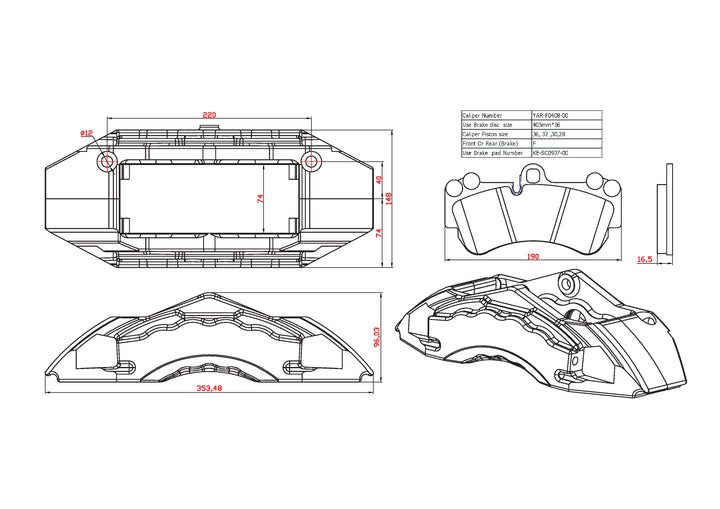

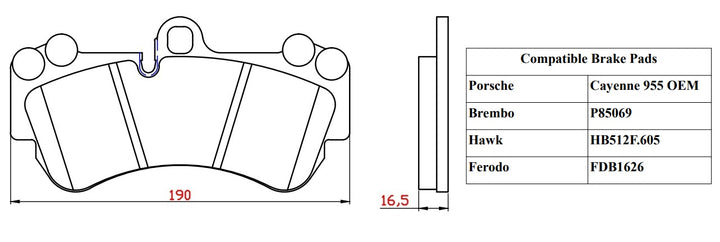

Front 405x36mm 8-pot

Front 430x36mm 8-pot

Electronic handbrake: Rear 330x28mm, Rear 345x28mm, Rear 356x28mm

Electronic handbrake: Rear 380x28mm

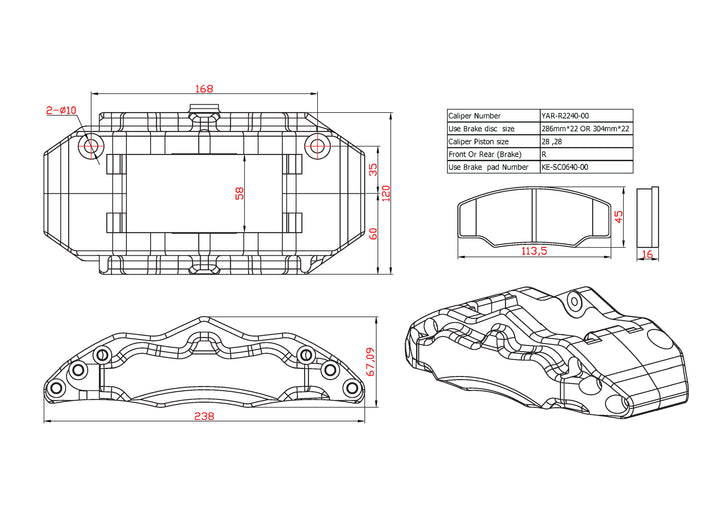

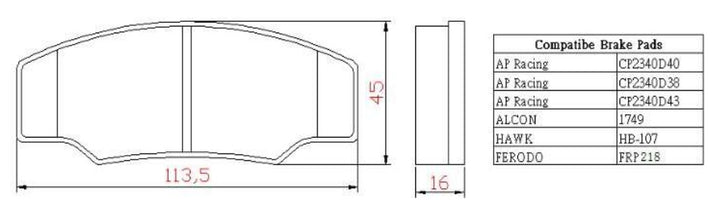

Rear 286x22mm / 304x22mm 4-pot

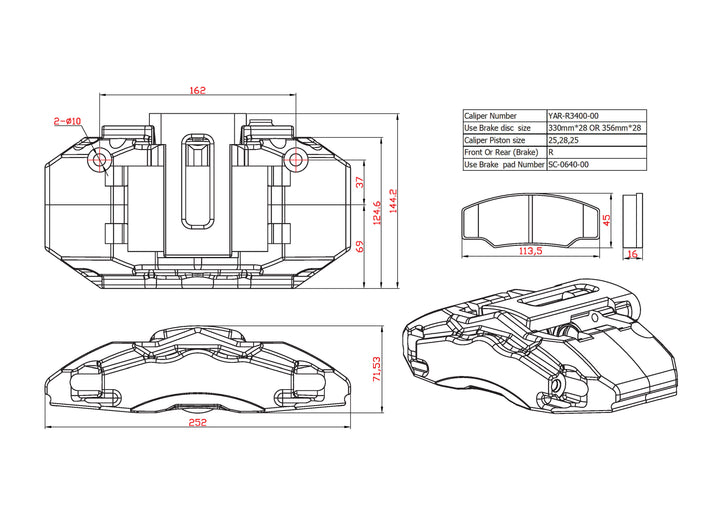

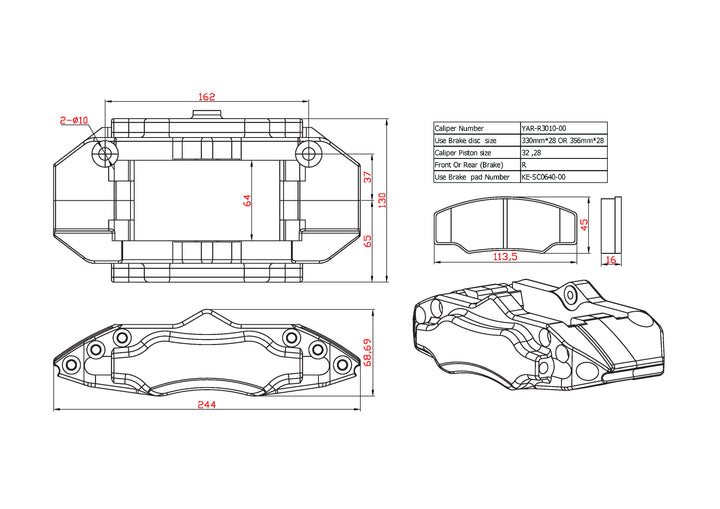

Rear 330x28mm 4-pot

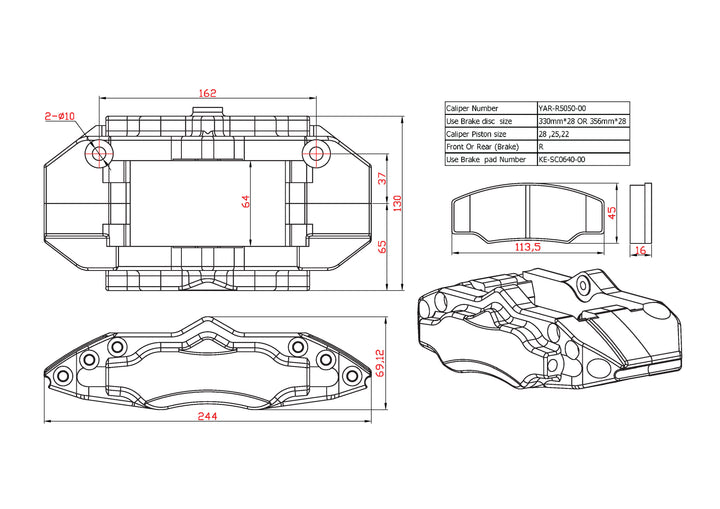

Rear 330x28mm / 356x28mm 6-pot

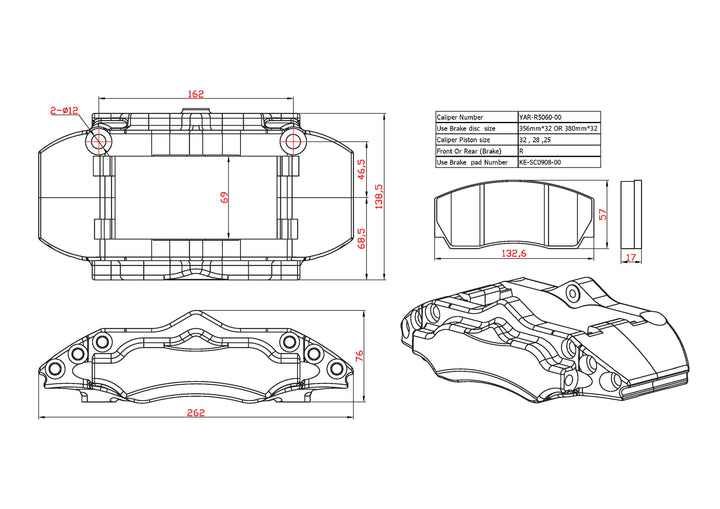

Rear 380x32mm 6-pot

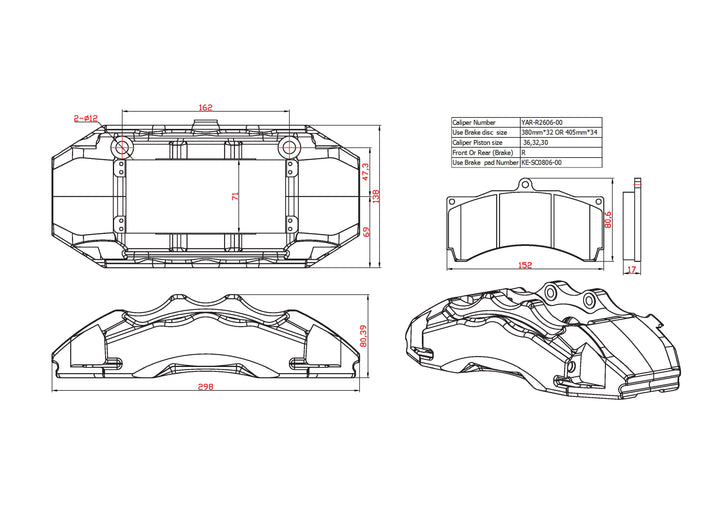

Rear 405x34mm 6-pot
