Caliper & Pad Drawings

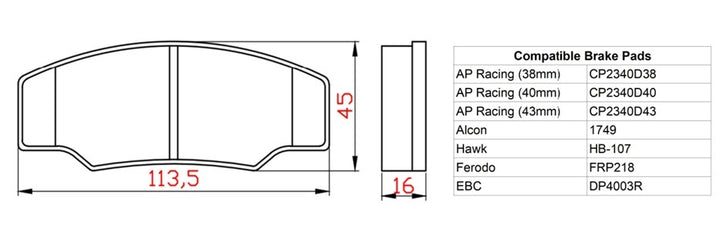

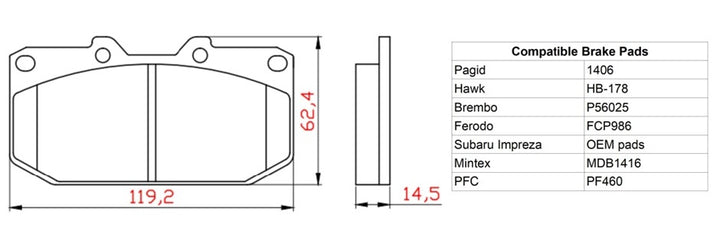

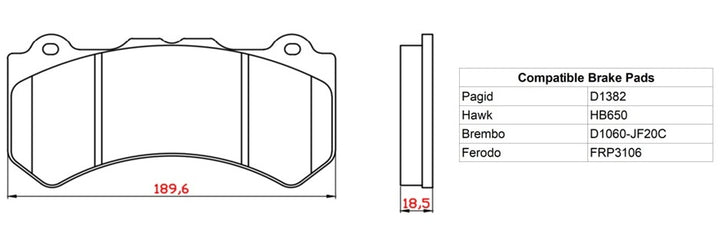

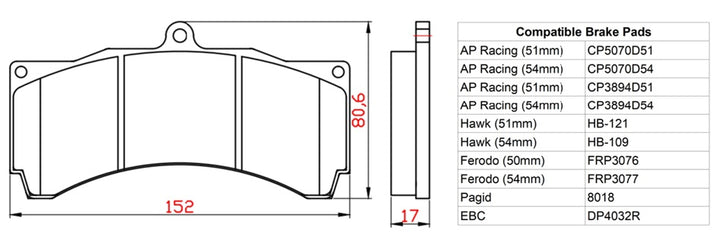

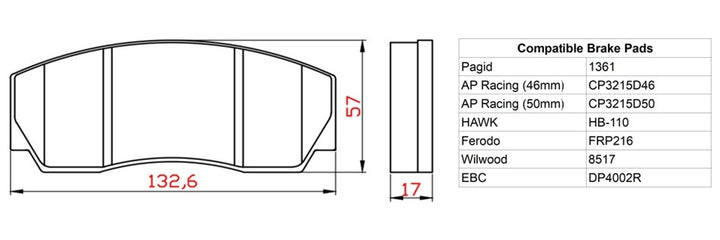

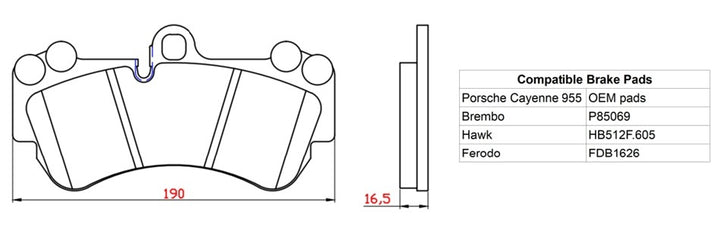

Technical drawings and measurements for our calipers and pads are available below. Scroll to the relevant size and application to see diagrams for your vehicle.

Some pad shapes are available in various depths, but each of the depths listed are compatible with PB calipers. We normally ship kits with the largest depth of pad, but the simplest way to check is by measuring the depth of the pad contact band on your brake rotors.
